DESCRIZIONE PRODOTTO

PREZZO

Alimentatore SkyRC efuel V2 1200W 50A [SK-200015]

€289,90



Specifications:

Voltage…………………………………………………………………………………………………100-240V AC
Input AC Frequency…………………………………………………………………………………………50-60Hz
Output Voltage……………………………………………………………………………………15-30V DC±0.5V
Output Current………………………………………………………………………………………………50A±1A
Current Overload Protection…………………………………………………………………………≤ 51A 500MS
Input Fuse…………………………………………………………………………………………… 20A Fuse
LCD Display………………………………………………………………………………Voltage Precision ±0.3V
Current Precision………………………………………………………………………………………… ±0.5A
Output Voltage Ripple………………………………………………………………………………………< 300mV
Power Efficiency………………………………………………………………………………………………89%
Power Factor……………………………………………………………………………………………………> 0.98
Over Temperature Protection………………………………………………………………………………<65℃
Cooling Method…………………………………………………………………………………………Cooling Fan
Operating Temperature………………………………………………………………………………………0-40℃
Operating Humidity……………………………………………………………………………………………0-90%
Dimensions (L*W*H)……………………………………………………………………………305x170x85mm
Net weight………………………………………………………………………………………………………3.08kg

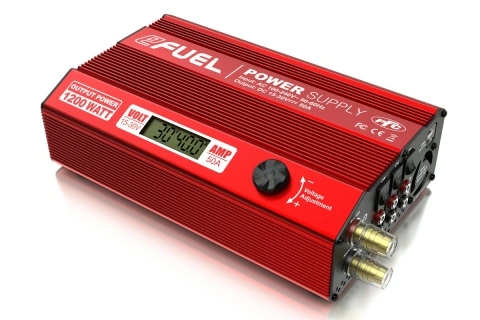

With 1200W outputs, adjustable output voltage from 15-30V and active PFC, it is the most advanced

power supply you will find anywhere. 1200W of output is ideal for a variety of high powered chargers,

and three outputs allow you to simultaneously operate multiple chargers or other devices.

An input voltage range of 100-240V makes it ready for worldwide compatibility with no setting required,
and the DC output voltage is flexible: simply turn the dial to adjust the voltage to suit your setup-digital
readouts give you an instant look at your output voltage and current.
Active power factor correction and a compact frame make this a great power supply to take to the
field and use with a generator.

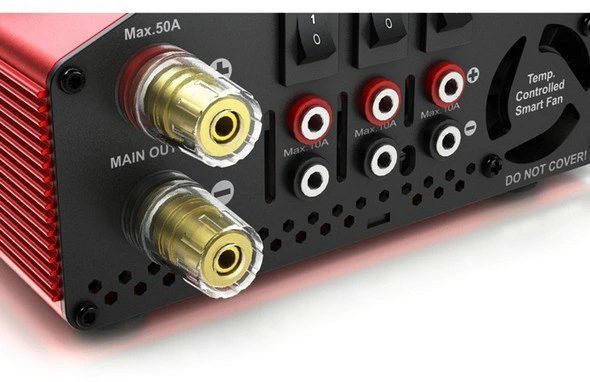

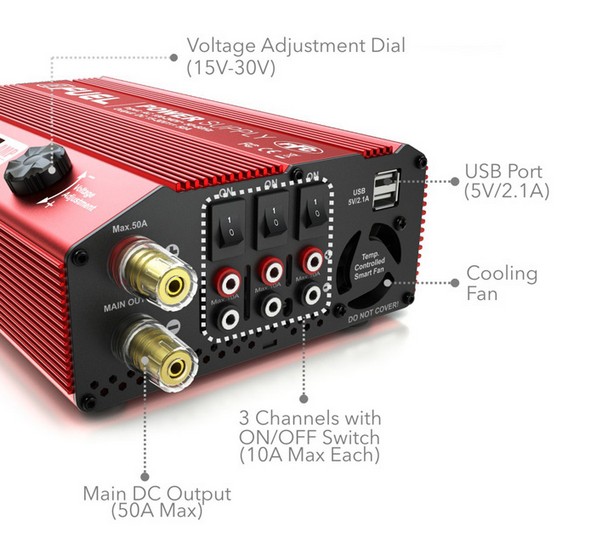

DC Output
One main DC power output, up to 50 amperes, three outputs (up to 10 amperes each) with ON/OFF switch.
1200W output gives you all the power you need to run your high-powered application, or use multiple
chargers simultaneously with three sets of integrated banana plug outputs!

Adjustable Output
Voltage 15-30V

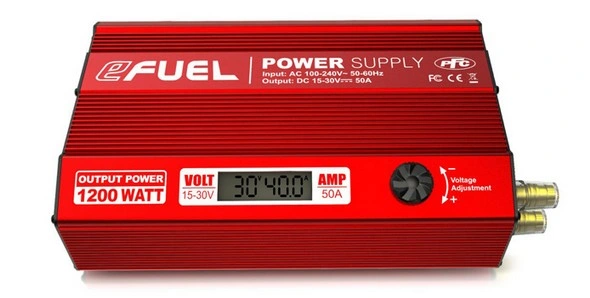

LCD Display
The output voltage and current are displayed on the digital readouts on the front, allowing you to
identify the voltage and current at a glance.

AC Input 100-240V
Worldwide operation:
need not any alternative switcher, worldwide safe operation.

Two USB Ports
It is 5 volts, 2100mA total for iPad, mobile phone, digital cameras and etc

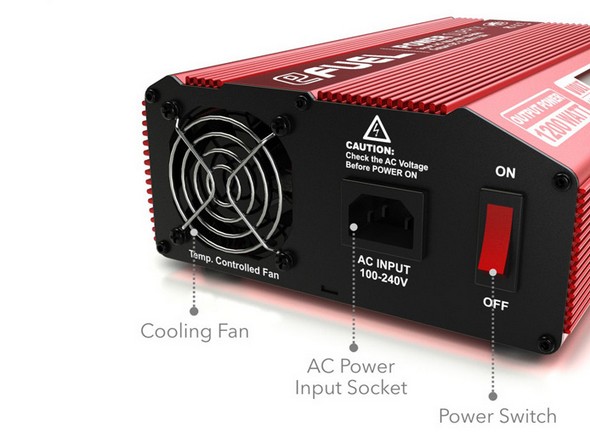

Smart Cooling Fan
It turns on at 50 °C upon the temperature automatically.
